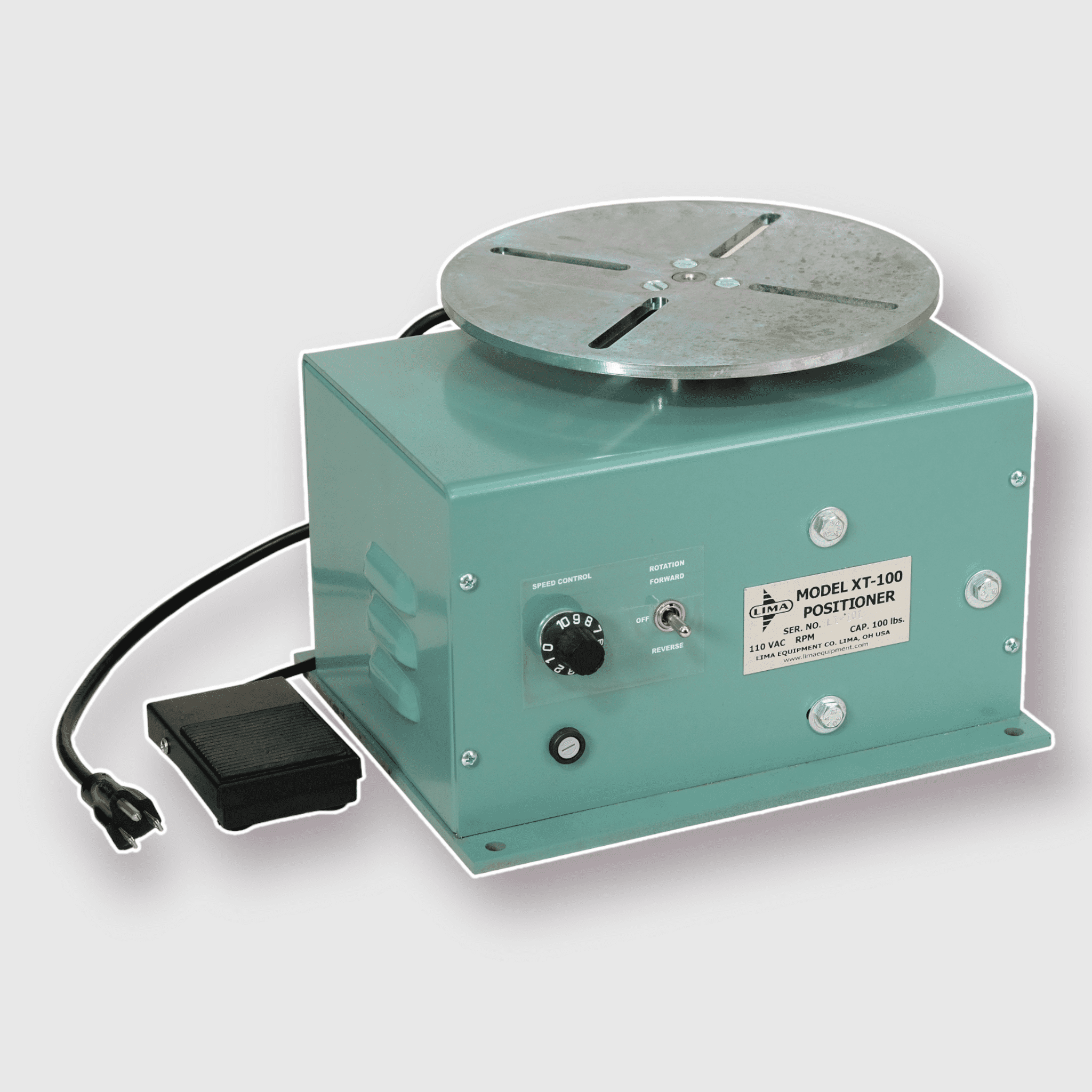

The Lima model XT-100 is a welding turntable, capable of handling loads up to 100 pounds in the horizontal position.  The table is driven by a DC Permanent Magnet gearmotor driving precision steel secondary gears.

Built in high frequency protection makes the Lima XT-100 well suited for MIG, TIG, or stick welding, as well as other processes such as painting, assembly, positioning,  or plasma cutting.

Up to 200A welding current is handled by way of built in solid brass grounding, including a threaded output stud for attaching a ground clamp or cable.

Operating the XT-100 is simple and straighforward.  The machine comes standard with an On/Off toggle switch and speed control on the panel.  A 5' power cable with plug, and a foot on/off switch are also included.  For those who prefer speed control at their feet, a foot rheostat is available as an optional accessory.

Features and Specifications:

100 lb. capacity in the horizontal position
9" Steel Slotted Table
Heavy duty welded steel construction
Precision steel gearing
Built in high frequency filtration
115VAC 60Hz. @ 1.3A

Available Speeds Ranges  (all speeds are no load +/- 10% at min and max ratings):

3-13 RPM Standard
.5 - 3 RPM Slow
6-20 RPM Fast
​
If you plan on rotating below 3 RPM regularly, we suggest the Slow unit to ensure the smoothest rotational performance at very slow RPM
